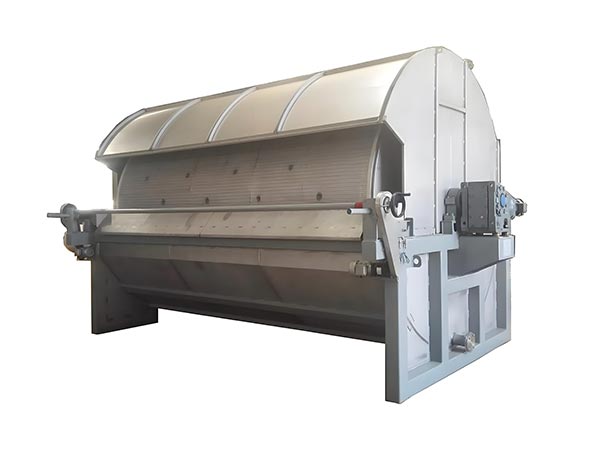

Ċina Disinn ta' Filtru rotanti ta' vakwu-

Il-filtru rotanti ta' vakwu huwa apparat industrijali li jikseb separazzjoni solidu-liquit kontinwa użg vacuum suction and a rotating drum. Its core component is a slowly rotating, hollow drum covered with filter cloth on its surface. Through the suction generated by internal vacuum pumping, the liquid in the suspension is drawn into the drum, while solid particles are retained to form a filter cake—enabling continuous filtration, dehydration, and discharge. It is widely used in industries such as chemical engineering, mining, and environmental protection.

Spećifikazzjonijiet

Mudell	Erja tal-filtru (㎡)	Djametru ta' tamburu (m)	Angolu ta' għaddes (°)	Veloċità ta' tamburu (r/min)	Qawwa prinċipali (kW)	Piż (kg)	Daqsijiet (mm)
G2/1.0	2	1	120	0.13~2	0.37	1520	1600x1800x1500
G5/1.6	5	1.6	120	0.13~2	0.55	2500	2200x2600x2100
G10/2.0	10	2	140	0.13~0.79	1.5	4160	3380x3000x2170
G15/2.5	15	2.5	140	0.13~0.79	1.5	5300	3860x3100x2750
G20/2.5	20	2.5	140	0.13~0.79	1.5	6320	4460x310x2750

Prinċipju ta' Ħidma tal-Filtru Rotanti ta' Vakwu

Il-prinċipju ta' ħidma ta' filtru rotanti ta' tamburu ta' vakwu tinsab fl-operazzjoni kollaborattiva ta' tamburu rotanti u s-sistema interna ta' vakwu biex tinkiseb kontinuous solid-liquid separation.

It-tamburu huwa parzjalment mgħaddes fis-sospensjoni li trid tiġi ttrattata. Is-sistema interna ta' vakwu toħloqnegative pressure, which draws the liquid into the drum for discharge. Simultaneously, solid particles are adsorbed onto the filter medium on the drum surface, forming a filter cake.

Hekk kif it-tamburu jdur b'mod kontinwu, il-kejk tal-filtru jgħaddi minn żona ta' tnixxija, żona ta' tbnat, ufinally reaches a discharge zone, where the discharge process is completed. The filter medium then re-submerges (into the suspension) to start the next cycle, enabling the continuous operation of the entire solid-liquid separation process.

Working Principle

Karatteristiċi tal-Filtru Rotanti ta' Vakwu

1.Operazzjoni Effiċjenti u Awtomatika

Bir-rotazzjoni ta' tamburu, il-filtru jitlesta erba' proċessi ewlenin—filtrazzjoni, tnixxija, tbnat, u skararge—enabling continuous production. Parameters such as rotation speed and vacuum degree can be adjusted automatically, eliminating the need for intermittent manual operation and reducing labor costs.

2.Prestazzjoni ta' Separazzjoni Stabbli

L-azzjoni kontinwa ta' pressjoni negattiva ta' vakwu mhux biss tiżgura veloċità ta' separazzjoni mgħaġġla imma wkollables deep dehydration, resulting in a low moisture content of the filter cake. The separation efficiency is less affected by fluctuations in material concentration, ensuring stable and controllable performance.

3.Adattabbiltà Wiesgħa ta' Materjali

Wara l-bidla tad-drapp tal-filtru u l-aġġustament ta' parametri bħal veloċità ta' rotazzjoni u grad ta' vakwu, filter can be adapted to various materials, including granular, viscous, and crystalline ones. It is applicable across fields such as chemical engineering, food processing, and mining.

4.Struttura Kompatta u Manutenzjoni Faċli

Jintegra funzjonijiet multipli f'unità waħda, il-filtru jokkupa spazju żgħir. Il-komponenti ewlenin tiegħuents are easy to assemble and disassemble. Daily maintenance mainly involves cleaning the filter cloth and replacing wearing parts, making the operation simple.
